THE EVOLUTION OF A SYMBOL

Jaime Busto Réplica

2022

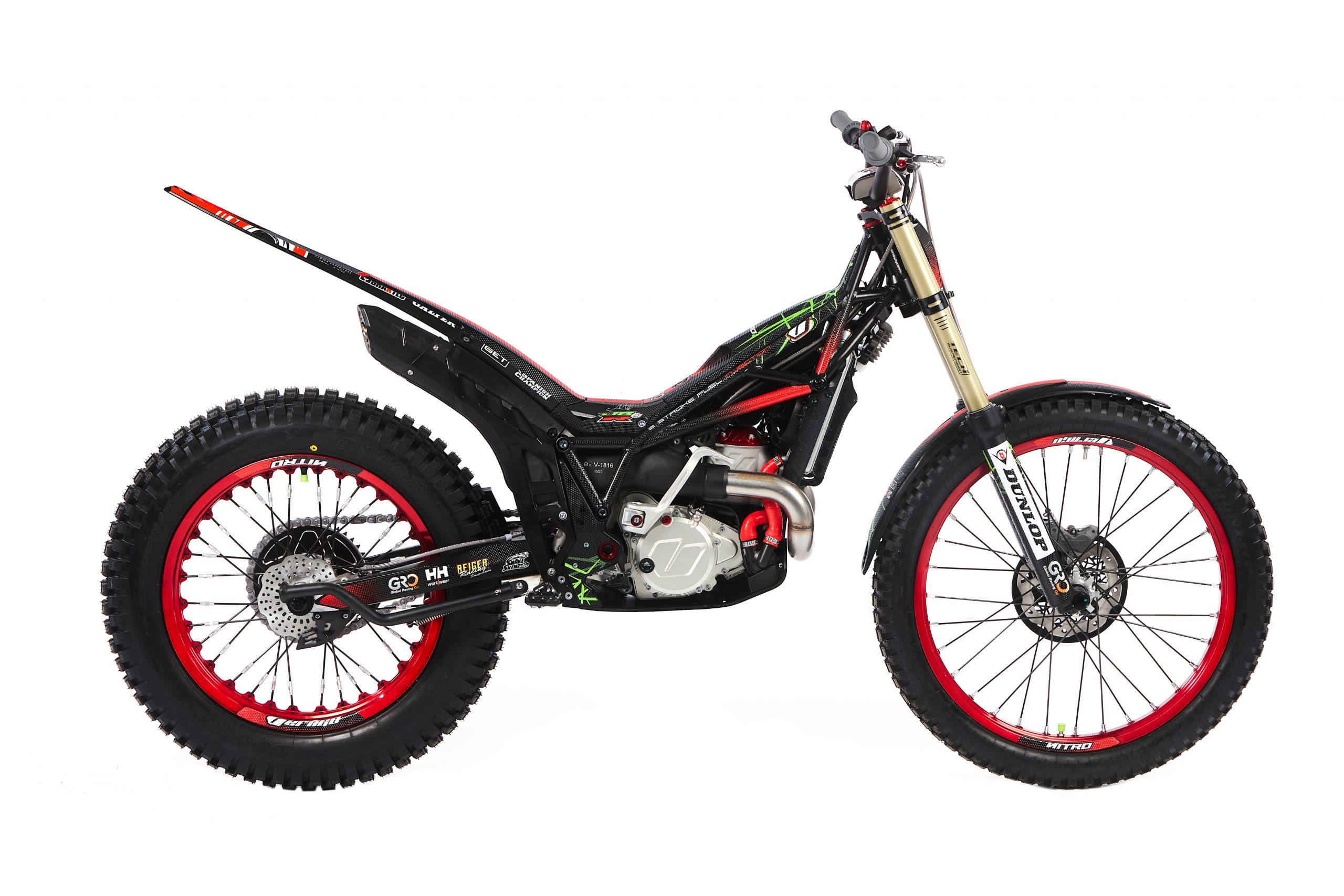

The JB-R model is the outstanding result of the fusion of two of the most successful Vertigo products. The high performance of the R series has been combined with the exclusive and unique essence of the Jaime Busto Replica.

To develop this new model, the Vertigo R&D engeneers have been working hand by hand with GET. The outcome is a revolutionary battery-assisted electronic injection system, which in all respects improves and facilitates the start of the bike while optimizing the operation of the its electrical components.

Other unique features of the JB-R over previous models are the new front fender, a machined clutch cover, silicone cooling hoses, machined aluminum hubs,  footrests and rear brake step plates.

The black, green and red textured Snake Skin vinyls and black side exhaust match the unmistakable, energetic and aggressive style of Jaime Busto, the current Trials Spanish Absolute Champion and third classified at TrialGP and X-Trial World Championships 2021.

La JB-R is available in all engine sizes: 125, 200, 250, 280 and 300cc.

Bike specifications

Engine
2 stroke engine
ENGINE SIZE
125cc EFI 200cc EFI 247cc EFI 280cc EFI 300cc EFI
Ø x STROKE
54×54.5mm 72.5×54.5mm 72.5x60mm 76x60mm 79x60mm
CRANKCASE
Aluminum

GEARBOX

6 speed gearbox, 4 gears designed for trials
CLUTCH
Multi-disc oil wet, adjustment preload
New mechanised clitch cover, detachable
CLUTCH
9z/48 9z/40 9z/40 10z/42 10z/42
HYBRID START SYSTEM
Battery assisted, for a easier start and optimised operation of the electrical components
Dedicated battery compartment under the seat, protected from mud and water
JB-R PERFORMANCE PARTS
Silicone cooling hoses
Bujes mecanizados en aluminio
Machined Vertigo footrests and rear brake step plates
Racing geometry throttle body
Snake Skin graphics JB-R edition
EXHAUST MUFFLER
All new silencer, black edition JB-R
– Improved suspension travel
– Reduced heat transfer to components
– Interchangeable fibers
– Reduced engine braking

– Snake skin vynils

MANIFOLD
125/200cc special design Stainless steel special design Stainless steel
RADIATOR
Vertigo design adapted to frame
FUEL INJECTION
Electronic injection
ENGINE SENSORS
Integrated injection driver
Protocol CAN 2.0 B
pressure and temperature sensor placed on the inlet manifold
TPS (Throttle position sensor)
WATER PUMP
All new ECU controlled electronic water pump Smaller but able to work with a large mayor:
– self purging
– Improved performance
– Smaller (better protection)
– Easier to access mechanically
FRAME
NITRO multitubular chassis 25CrMo4 steel with new micro-fusion shock mount + aluminium 6082 subframe
– Enhaced dynamics and response
– Improved suspension travel
FRONT FENDER
New design with greater protection for motorcycle and rider
SWINGARM
Black Aluminium cast
FRONT SUSPENSION
170 mm stroke Tech Factory
REAR SUSPENSION
Monoshock / swingarm, Vertigo design
wingarm combined with REIGER 2 way monoshock with compression, rebound and spring preload adjustment
170mm stroke
AIRBOX

High capacity airbox. New design providing better performance especially in lower RPM

FUEL TANK
New high capacity 2.3l and repositioned fuel tank, low and centered CG
HANDLEBAR
Renthal Fatbar
FRONT BRAKE
Hydraulic Braktec system with 185mm disc
FRONT CALIPER
4 pistons
FRONT RIM
Morad Red 1.60 x 21″ , red anodized hubs Vertigo design
REAR BKAKE
Hydraulic Braktec system with 150mm disc FIM Homologated
REAR CALIPER
2 pistons
REAR RIM
Morad Bronze 2.15×18″, red anodizded hub Vertigo design
TYRES
Dunlop D803GP
SKID PLATE
Redesigned 6mm skid plate, lighter, better shock defense
NEW PLASTICS

Lower height, increased rider mobility. Special JBR racing image design

QR CODE
QR code with access to Vertigo’s website
WEIGHT
66.6kg 68kg
