THE EVOLUTION OF THE SPECIES

NITRO WORKS

2024

Evolution is key to survival and just as species adapt and improve over time to survive in their environment, Vertigo has embarked on a journey of continuous improvement to offer trial enthusiasts an exceptional experience in 2024 with the new Nitro Works range.

Vertigo Motors has refined its range of trial bikes for 2024 with a series of improvements that are the result of research, racing experience and a passion for trial. The new Vertigo Nitro Works 2024 range of motorbikes features all of these improvements that will undoubtedly make it even easier for riders to enjoy their experience on a bike incorporating top quality cutting-edge elements.

ENGINE SIZE

300cc 280cc 250cc225cc125cc

DOWNLOADS:

SPARE PARTS BOOK 2024 NITRO: 125cc |225cc | 250cc 280cc 300cc

Bike specifications
Engine

2 stroke engine

ENGINE SIZE
125cc EFI 225cc EFI 247cc EFI 280cc EFI 300cc EFI
Ø x STROKE
54×54.5mm 64×54.5mm 72.5x60mm 76x60mm 79x60mm
CRANKCASE
Aluminum

GEARBOX

6 speed gearbox, 4 gears designed for trials

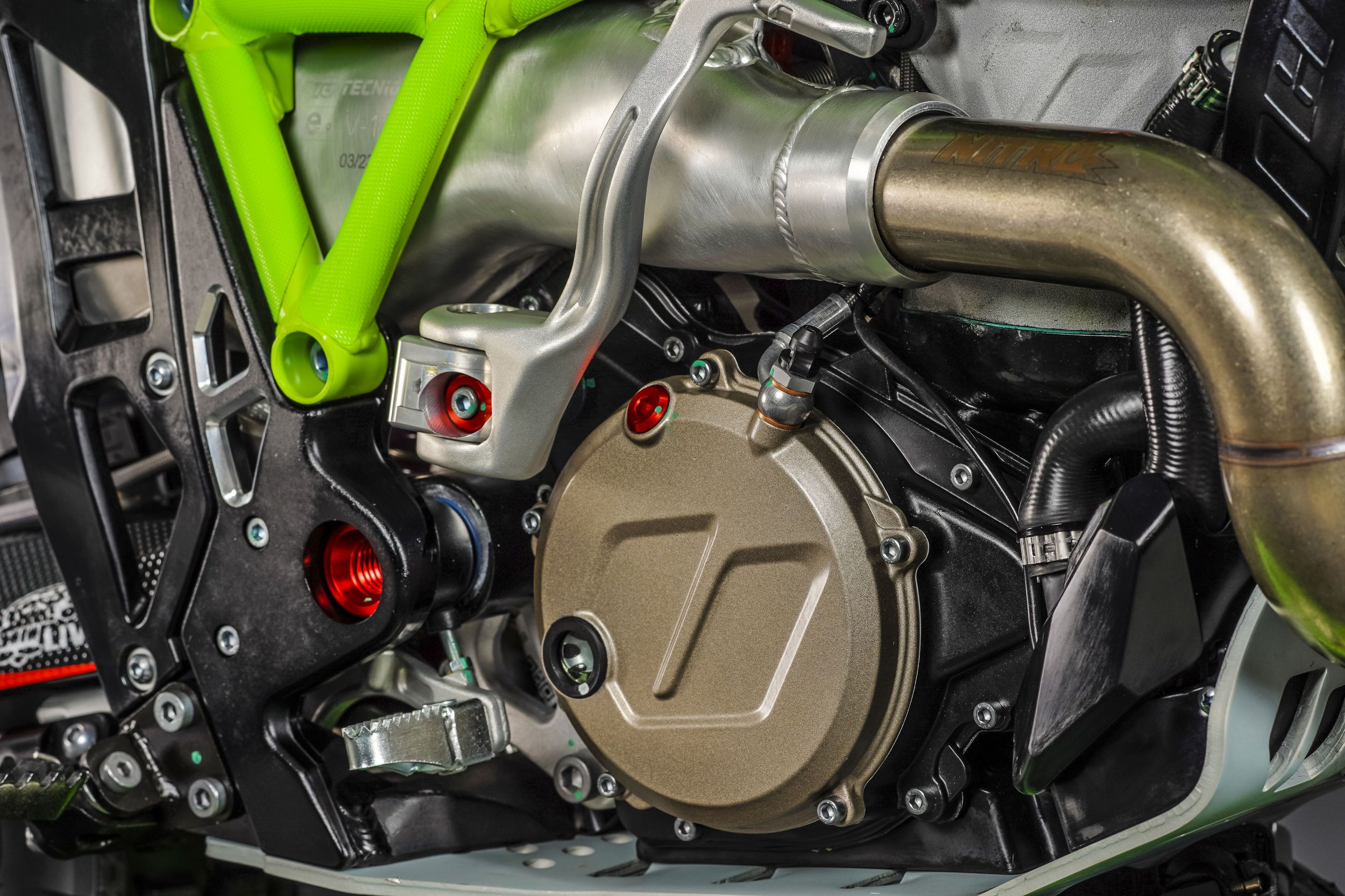

CLUTCH
Multi-disc in oil with preload and size springs designed for a smoother and more efficient shift
Removable clutch cover
TRANSMISSION
9z/48 9z/42 10z/42 10z/42 10z/42
EXHAUST MUFFLER

All new silencer: Improved suspension travel, reduced engine braking, reduced heat transfer to components, interchangeable fibers

exhaust MANIFOLD
12 Vertigo 125/225cc design in stainles steel Vertigo special design in stainless steel
INLET MANIFOLD
Racing geometry throttle body (red) design in stainles steel
radiator

Vertigo design adapted to frame shape

FUEL INJECTION
Electronic fuel injection
ENGINE SENSORS
Integrated injection driver
Protocolo CAN 2.0 B
Atmospheric pressure & Air temperature sensor
TPS (Throttle position sensor)
WATER PUMP
Brushless, self purging water pump

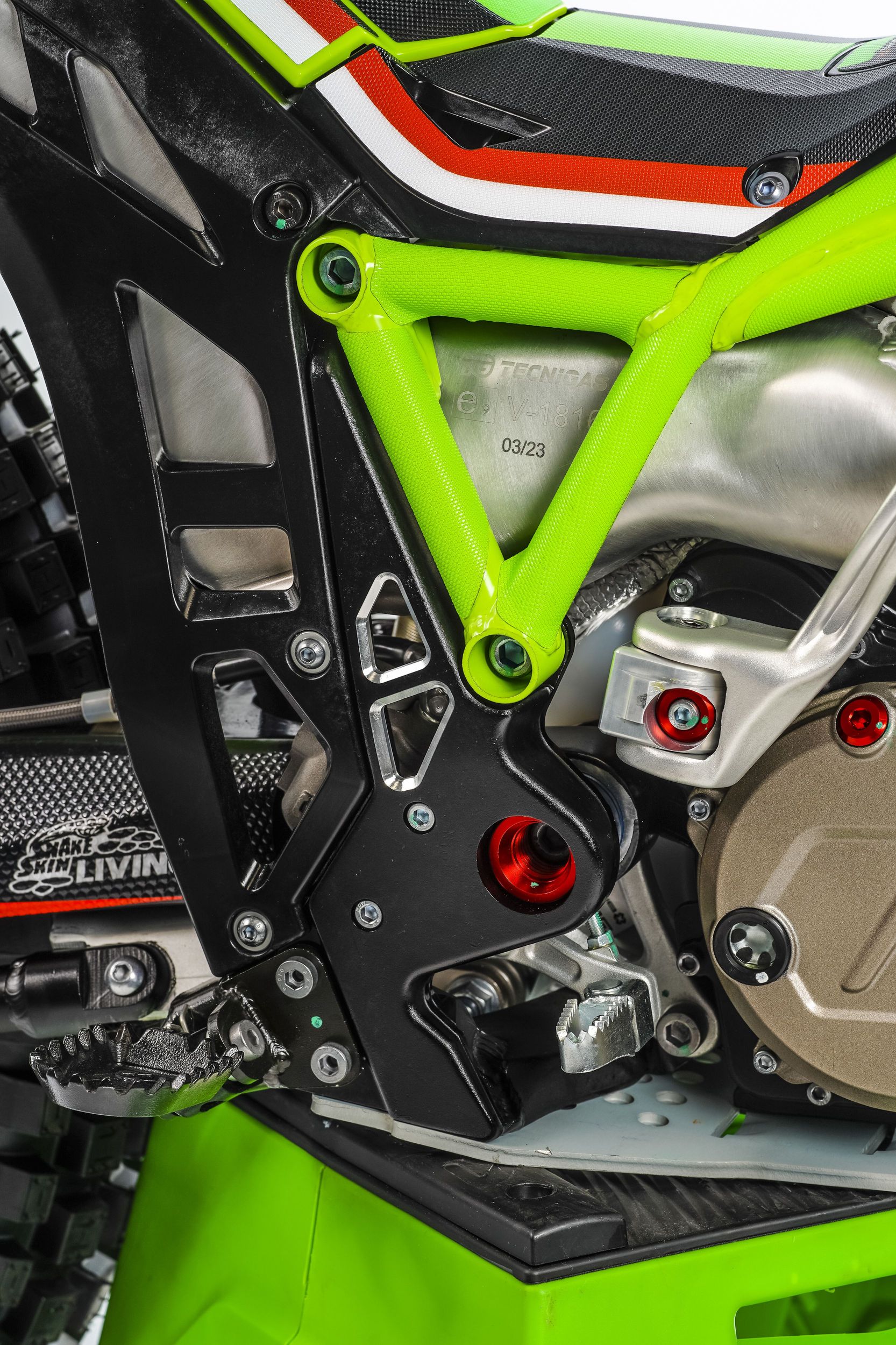

FRAME
NITRO multitubular green frame 25CrMo4 steel

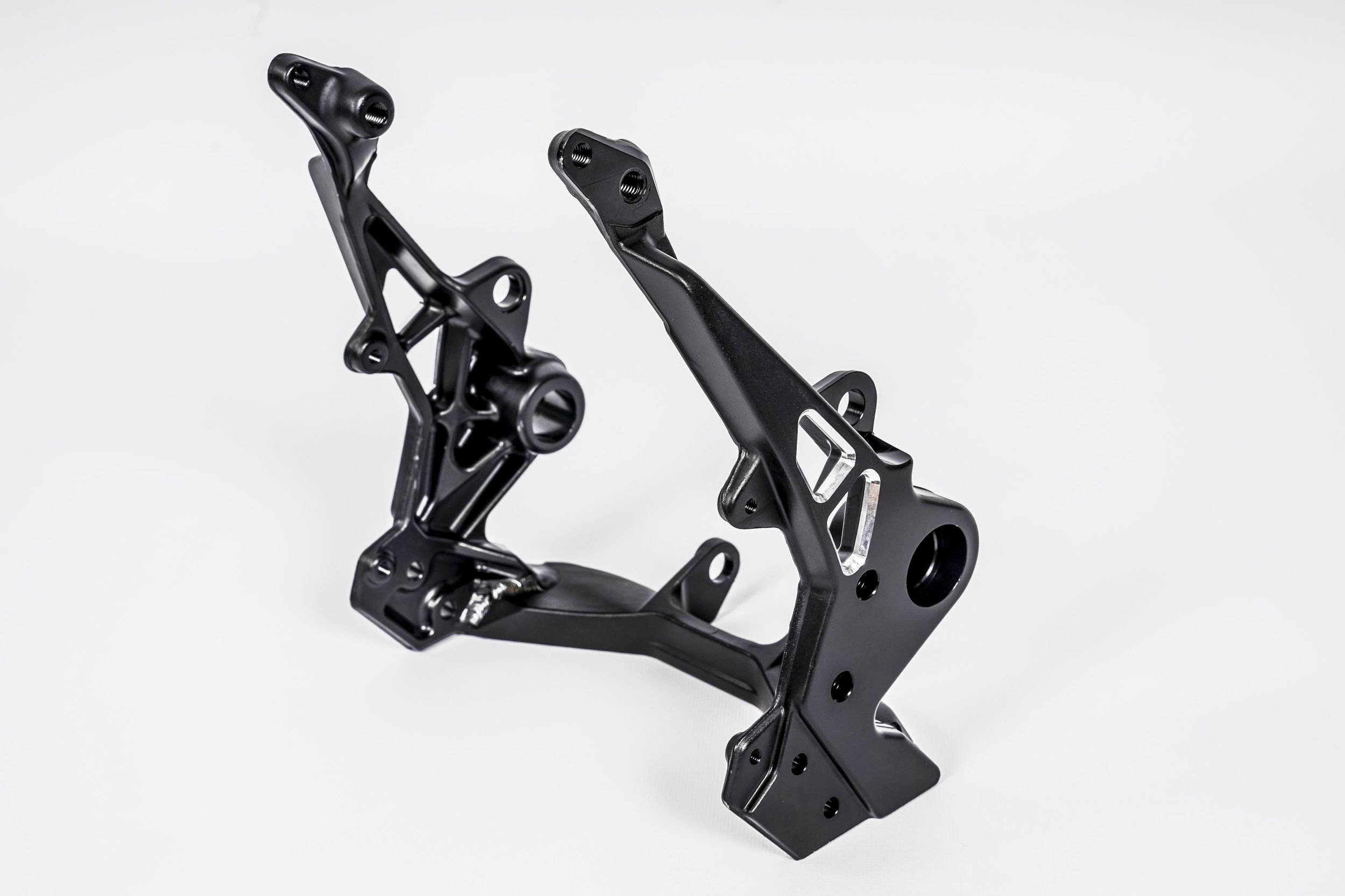

SUBFRAME
Lightened 6082 aluminium subframe
SWINGARM

Black aluminium cast

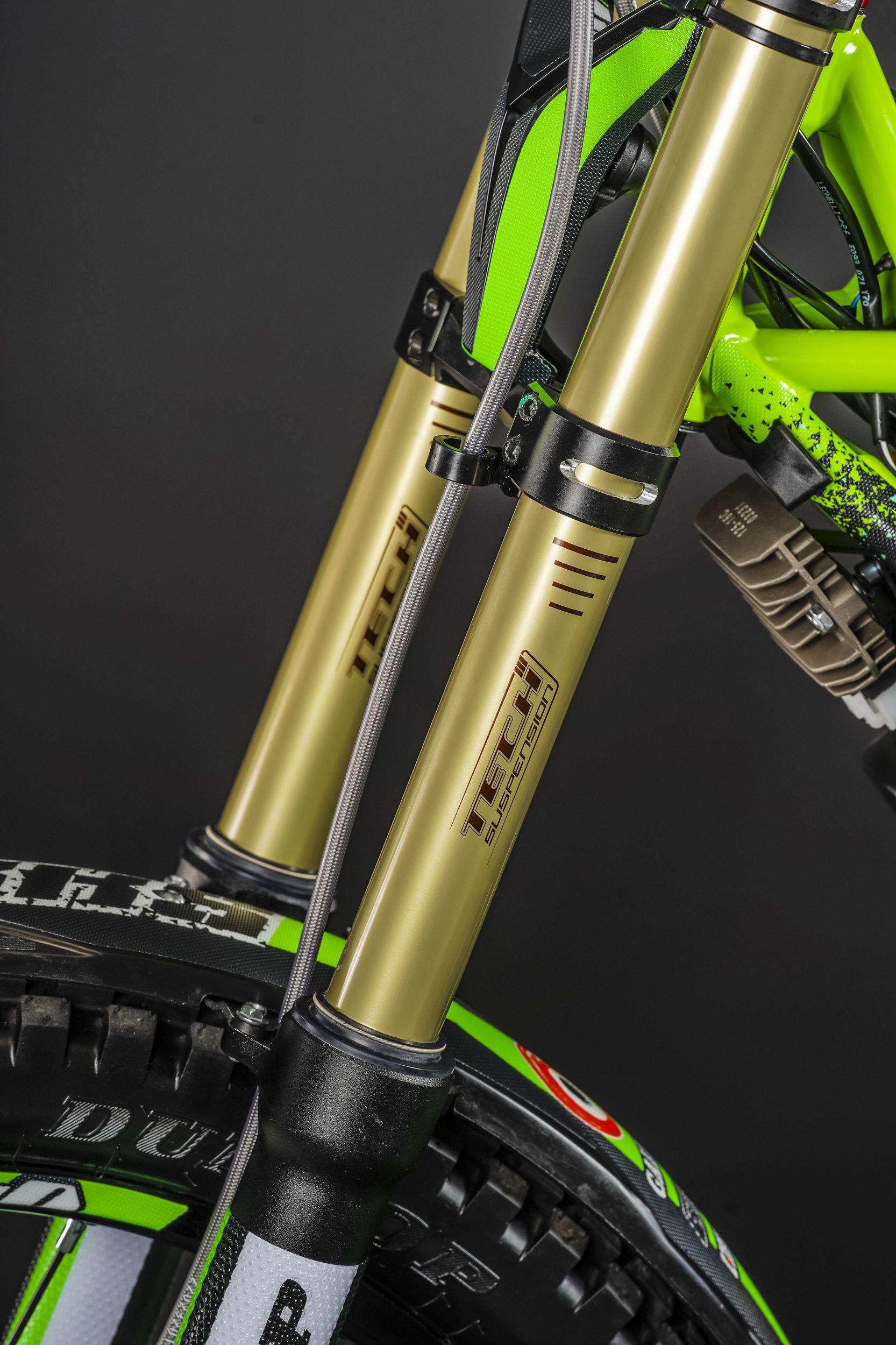

FRONT SUSPENSION
Tech Factory 170mm stroke
REAR SUSPENSION
Monoshock / swingarm, Vertigo design
Swingarm combined with REIGER 2 way monoshock with compression, rebound and spring preload adjustment
170mm stroke
AIRBOX
Design providing enhanced performance
FUEL TANK
New high capacity 2.3l and repositioned fuel tank, low and centered CG

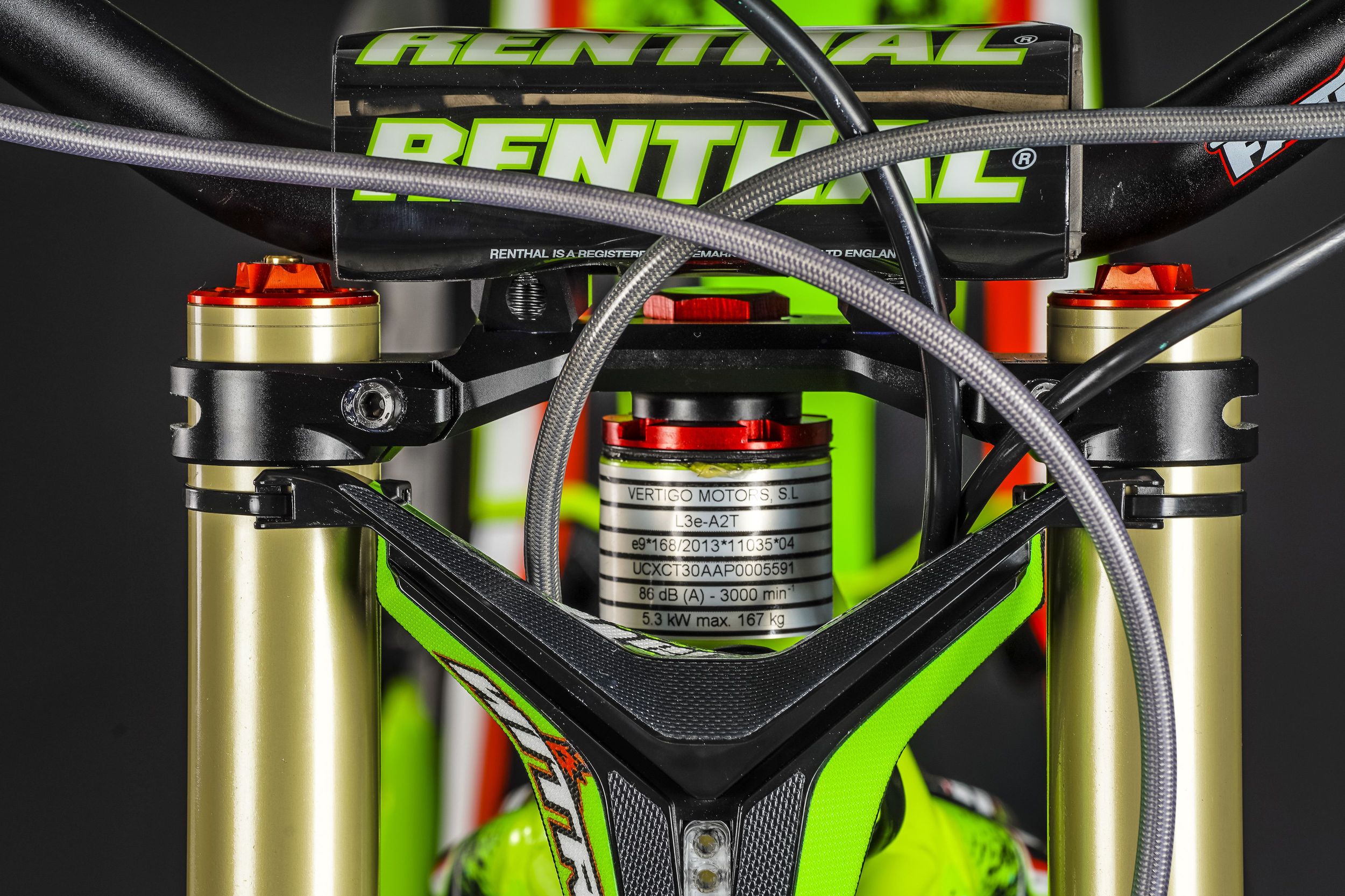

HANDLEBAR
Renthal Fatbar + green Renthal handlebar protector
FRONT BRAKE
Hydraulic Braktec system with 185mm disc
FRONT CALIPER
4 pistons

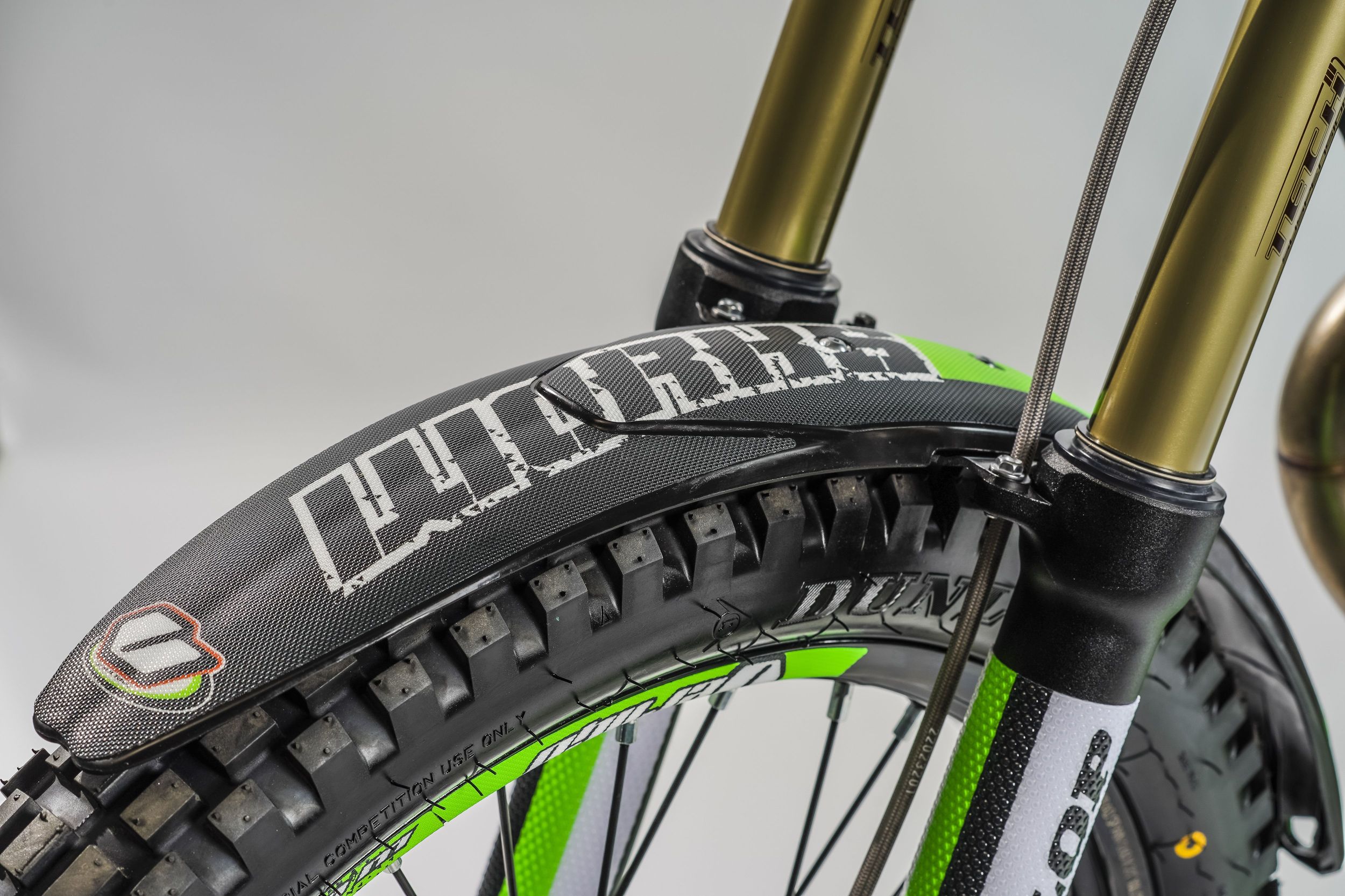

FRONT RIM
Morad Black 1.60 x 21″ with Vertigo design with silver aluminium hubs
REAR BKAKE
New Hydraulic system with 150mm FIM disc
REAR CALIPER
2 pistons
REAR RIM
Morad lightweight Black anodized 2.15×18″ with silver aluminium hubs
TYRES
Dunlop D803GP
TOTAL LENGTH
2010mm
DISTANCE BETWEEN AXIS
1310mm
SEAT HEIGHT
680mm
WEIGHT

68kg

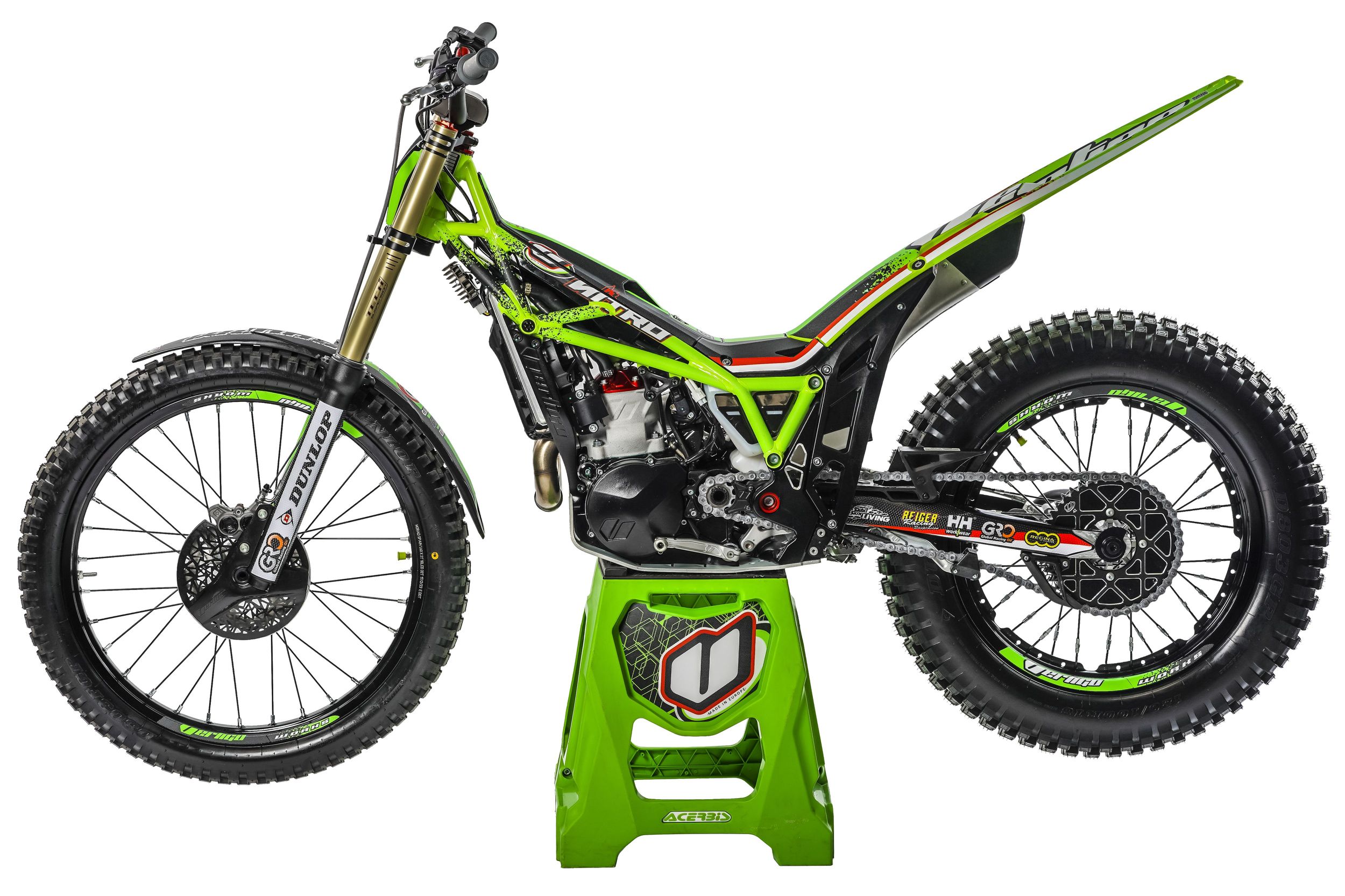

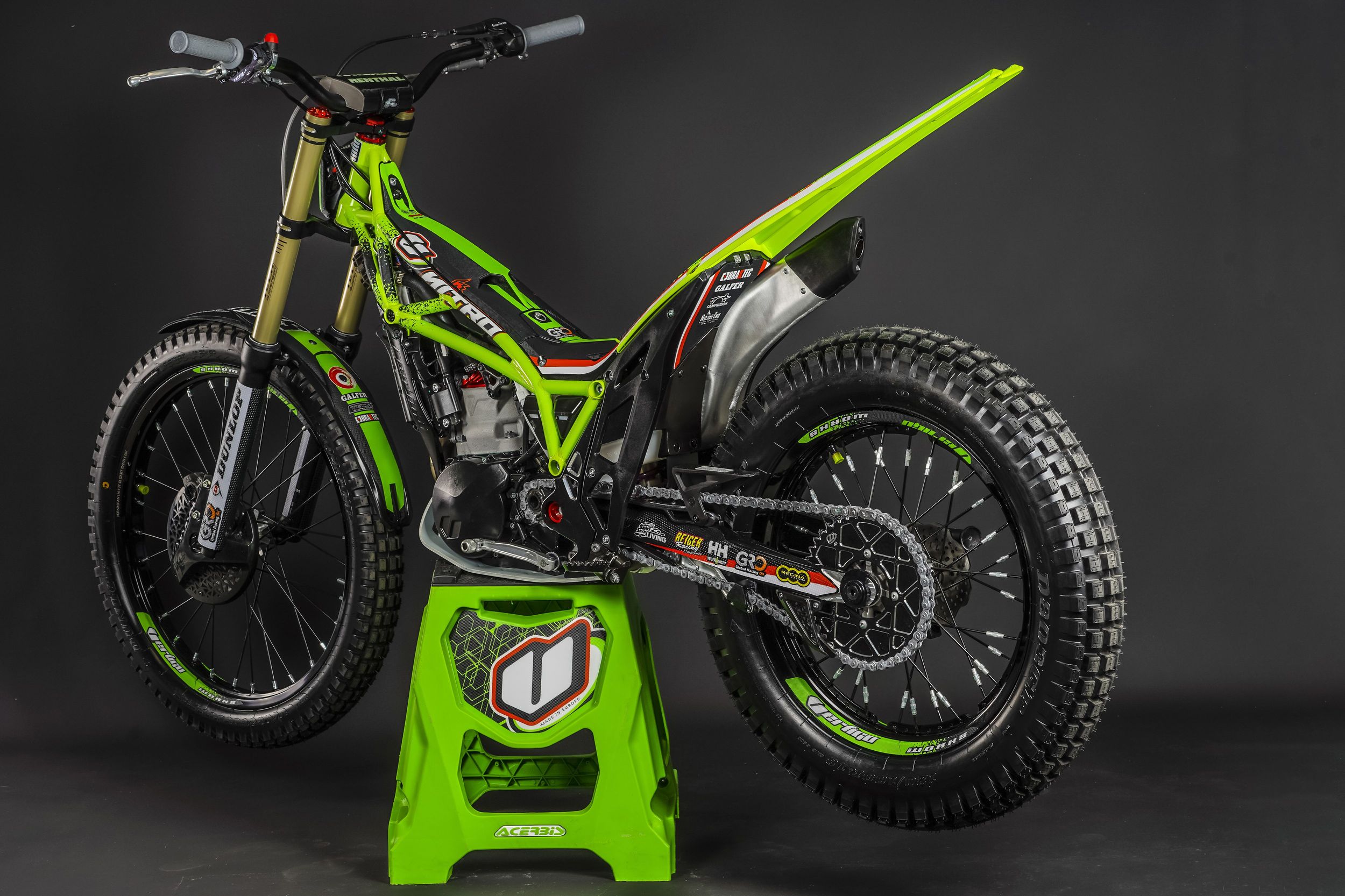

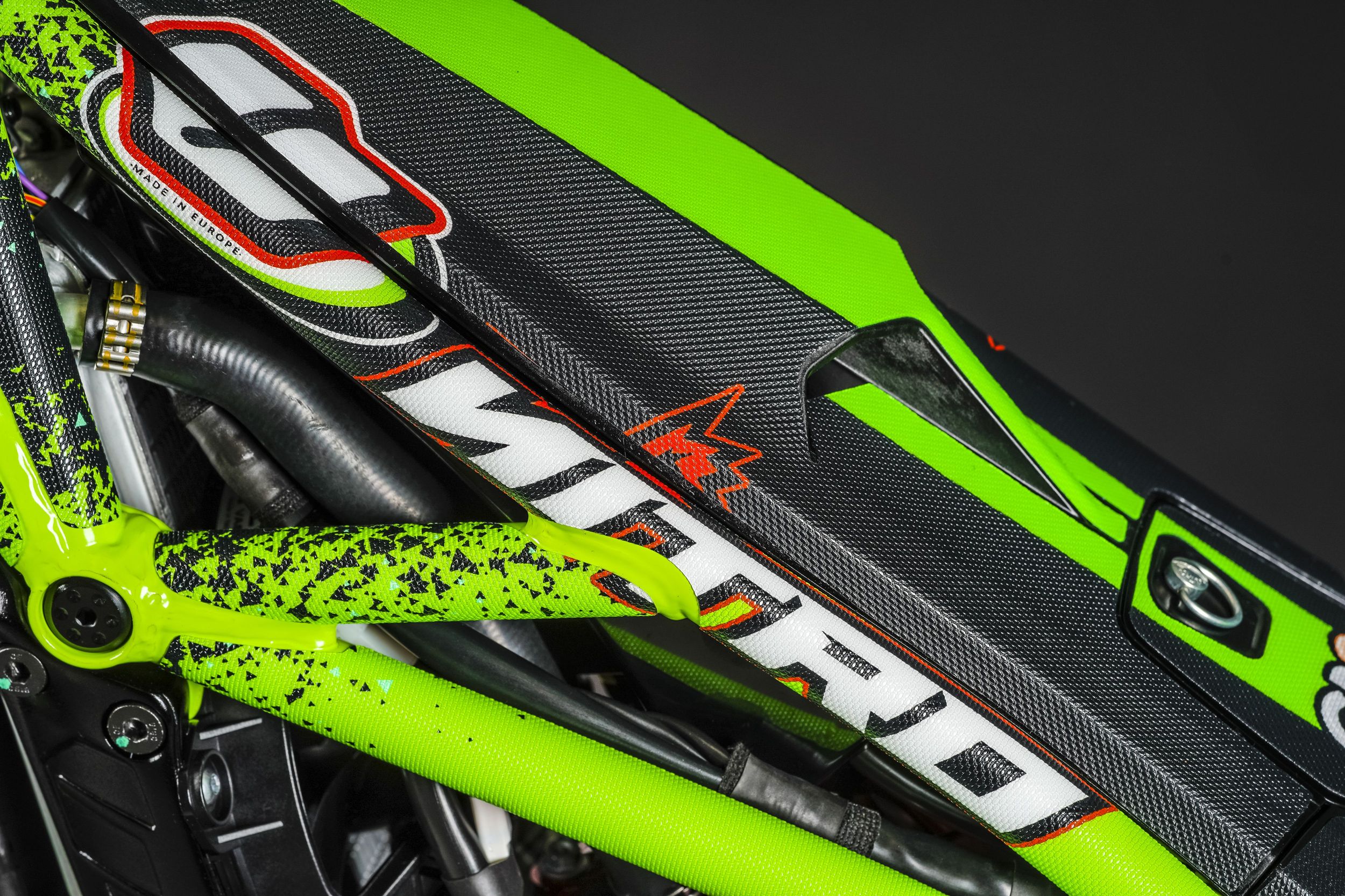

Photo Gallery
