THE BEST-SELLING BIKE IN VERTIGO’S HISTORY

NITRO WORKS

2023

Far exceeding initial expectations by becoming the best-selling motorcycle in the brand’s history and achieving victories in all major national and international competitions, the 2023 version of the Nitro consolidates the model in the elite and the Vertigo brand as the clear reference for innovation, technology and performance in the trials world. Available in a wide range of engine sizes, 125cc, 225cc, 250cc, 280cc and 300cc, there is a Nitro capable of satisfying the demands of any user, from young riders in their learning phases, to experienced users and the PROs who regularly compete.

DOWNLOADS:

SPARE PARTS BOOK 2023 NITRO: 125cc |225cc | 250cc 280cc 300cc

Bike specifications

Engine

2 stroke engine

ENGINE SIZE
125cc EFI 225cc EFI 247cc EFI 280cc EFI 300cc EFI
Ø x STROKE
54×54.5mm 64×54.5mm 72.5x60mm 76x60mm 79x60mm
CRANKCASE
Aluminum

GEARBOX

6 speed gearbox, 4 gears designed for trials
CLUTCH
New configuration multi-disc oil wet adjustable preload
CLUTCH
9z/48 9z/42 10z/42 10z/42 10z/42
EXHAUST MUFFLER

All new silencer: Improved suspension travel, reduced engine braking, reduced heat transfer to components, interchangeable fibers

MANIFOLD
125/200cc Racing geometry throttle body Racing geometry throttle body special design Stainless steel
radiator

Vertigo design adapted to frame

FUEL INJECTION
Electronic fuel injection
ENGINE SENSORS
Integrated injection driver
Protocolo CAN 2.0 B
Atmospheric pressure & Air temperature sensor
TPS (Throttle position sensor)
WATER PUMP
All new ECU controlled electronic water pump
FRAME
New multitubular chassis 25CrMo4 steel with new micro-fusion shock mount + aluminium 6082 subframe
SWINGARM
Black Aluminium cast
FRONT SUSPENSION
Tech Factory 170mm stroke
REAR SUSPENSION
Monoshock / swingarm, Vertigo design
Swingarm combined with REIGER 2 way monoshock with compression, rebound and spring preload adjustment
170mm stroke
AIRBOX
Design providing better performance especially in lower RPM
FUEL TANK
New high capacity 2.3l and repositioned fuel tank, low and centered CG
HANDLEBAR
Renthal Fatbar
FRONT BRAKE
Hydraulic Braktec system with 185mm disc
FRONT CALIPER
4 pistons
FRONT RIM

Morad Black 1.60 x 21″ with Vertigo design with aluminium forged hubs

REAR BKAKE
New Hydraulic system with 150mm FIM disc with improved accessibility to the clutch
REAR CALIPER
2 pistons
REAR RIM

Morad lightweight Black anodized 2.15×18″ with aluminium forged hubs

TYRES
Dunlop D803GP
TOTAL LENGTH
2010mm
DISTANCE BETWEEN AXIS
1310mm
SEAT HEIGHT
680mm
WEIGHT
66.6kg

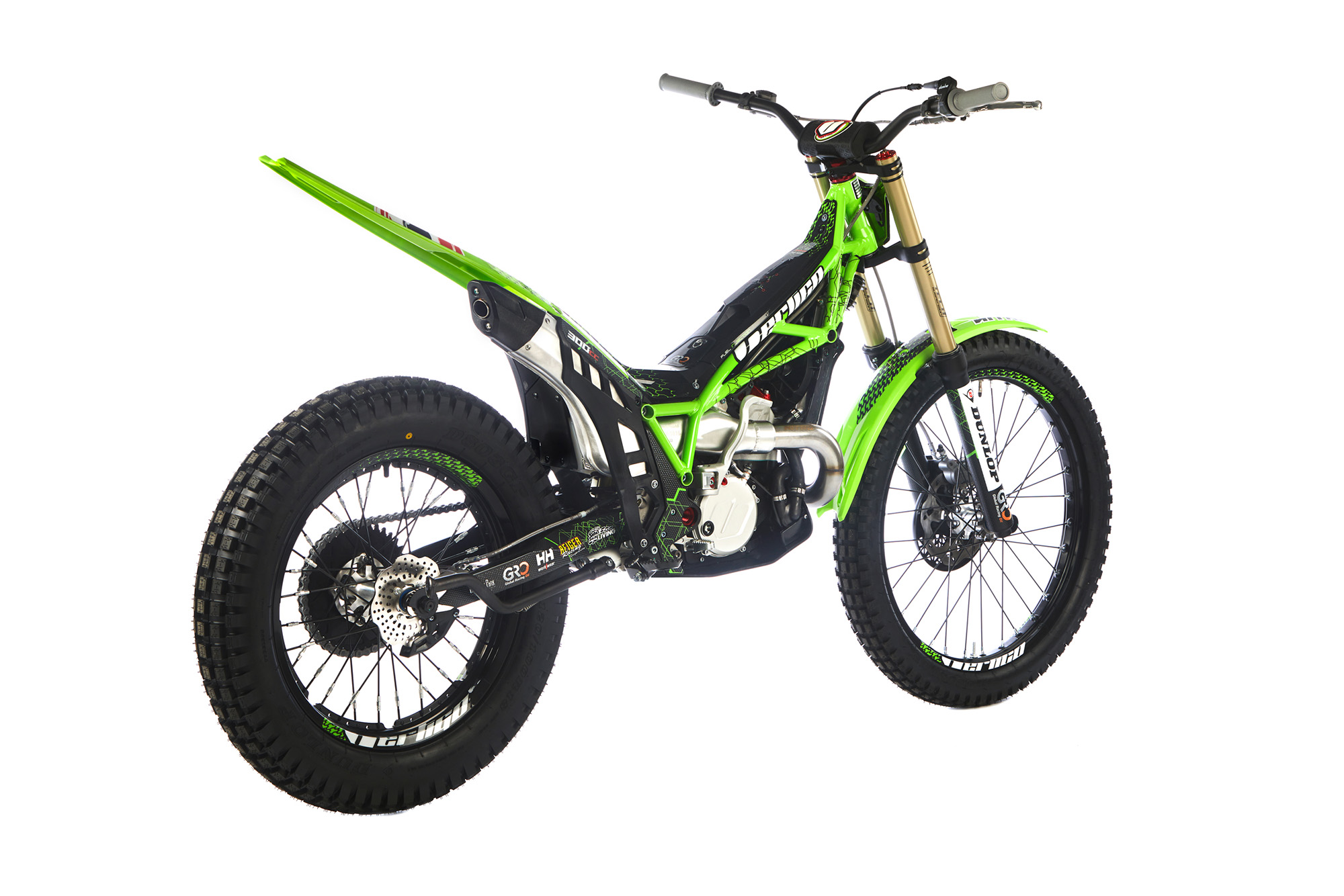

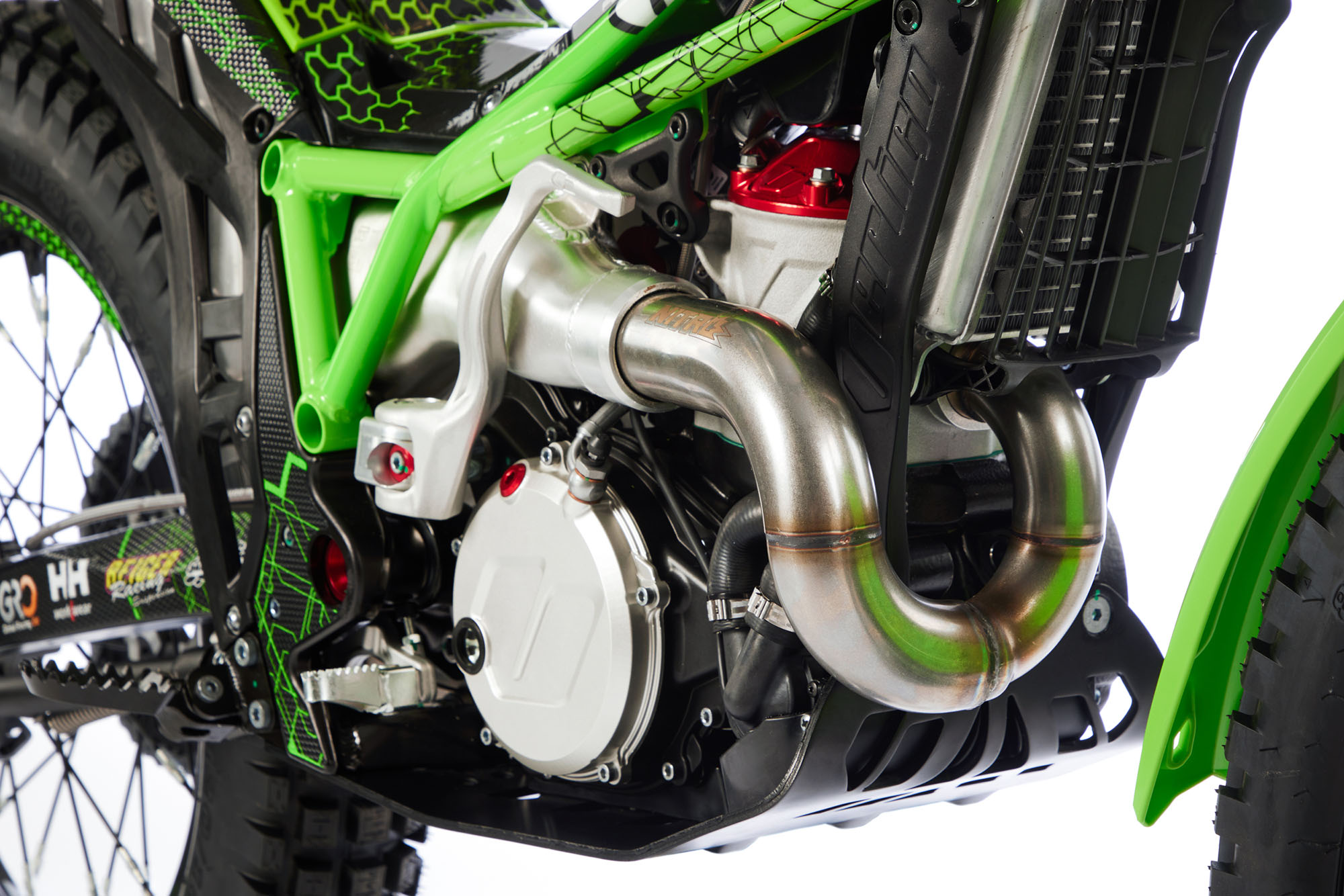

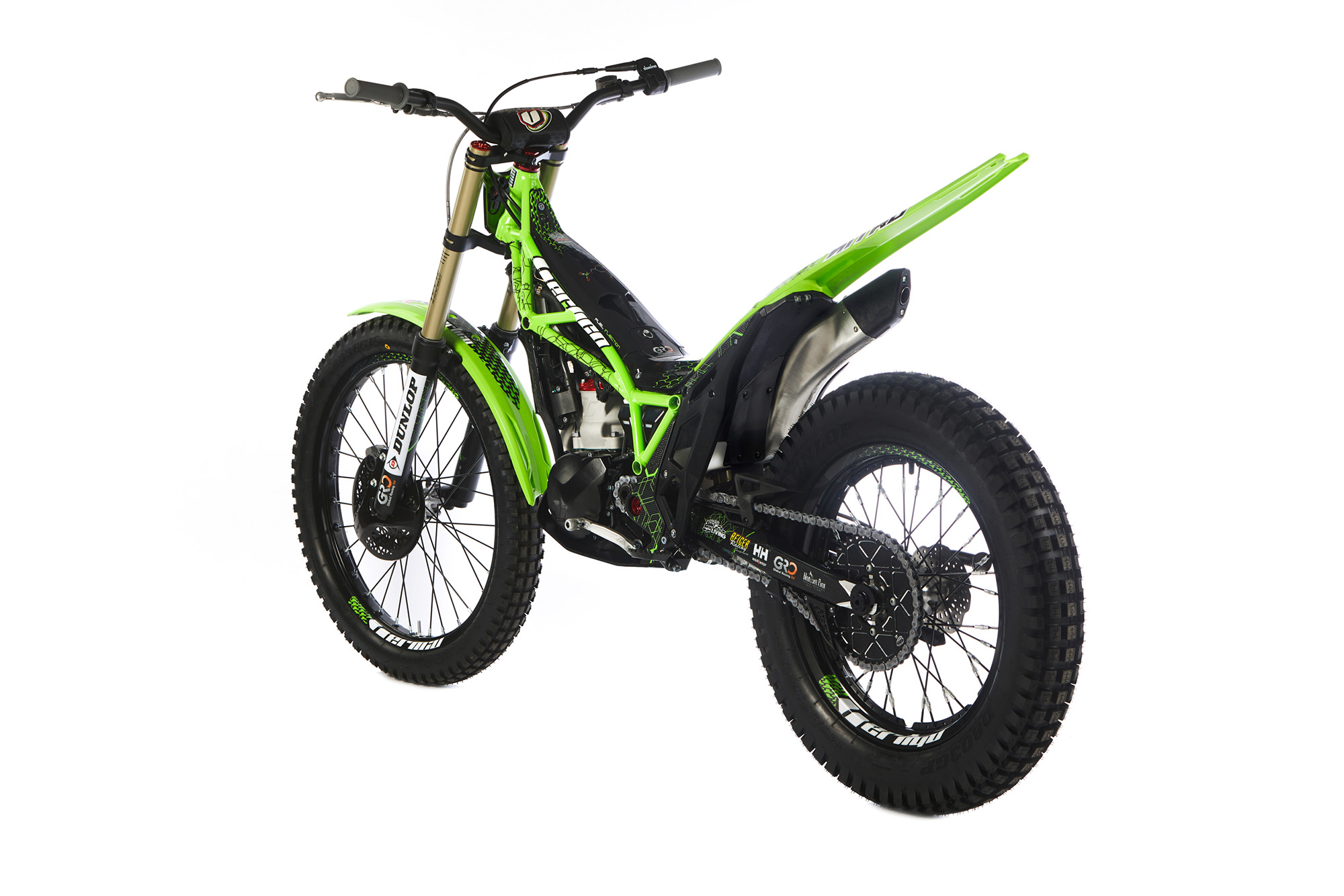

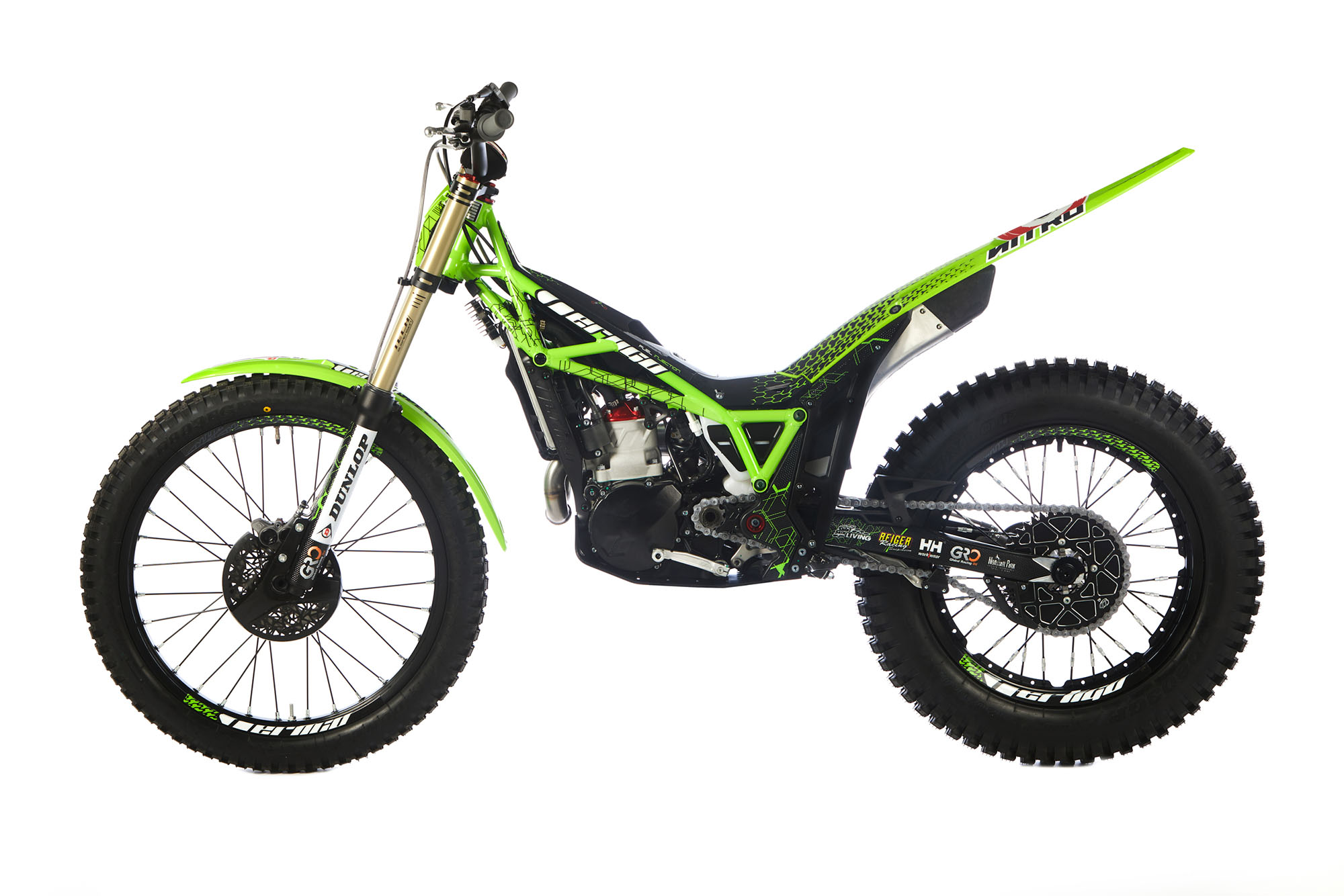

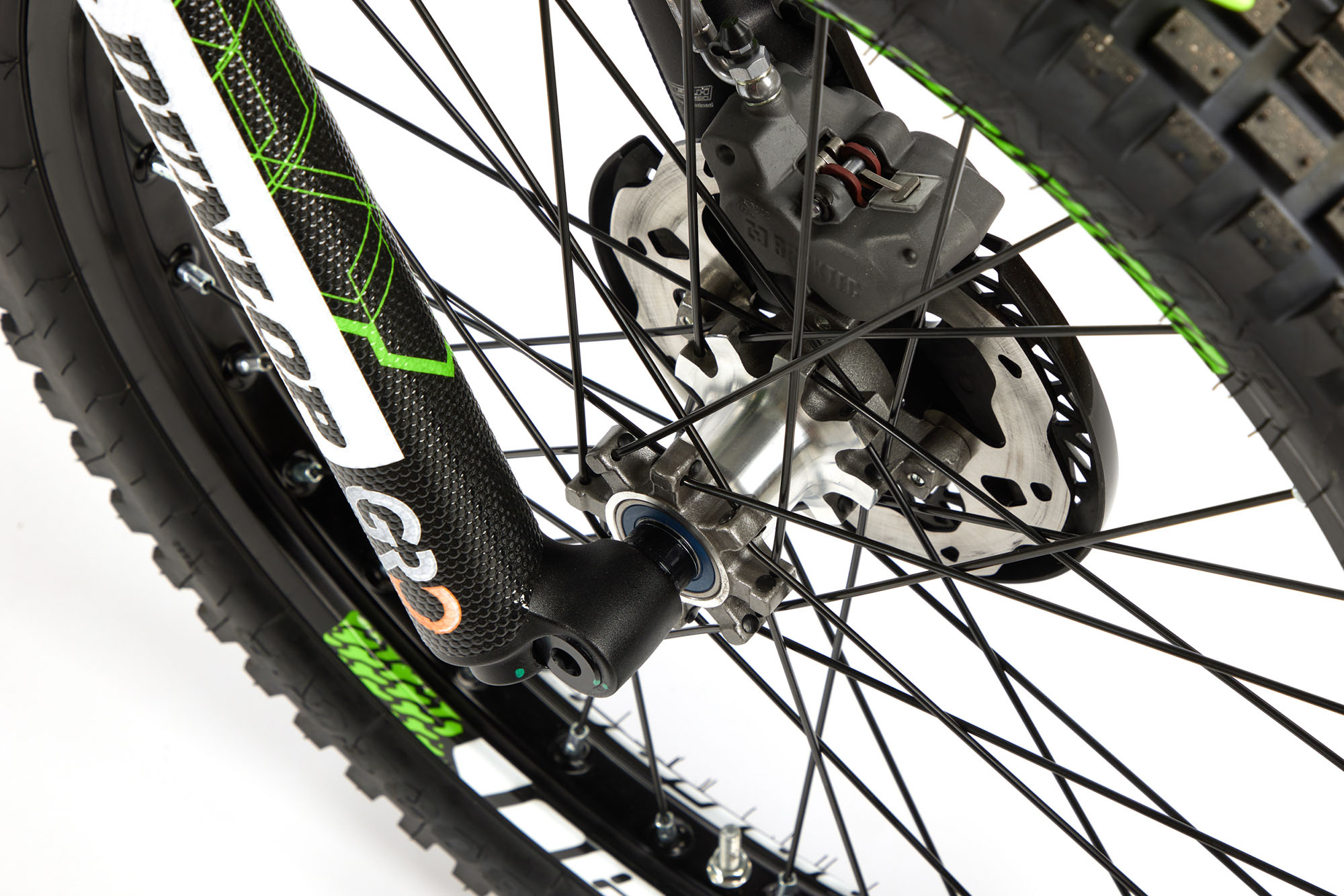

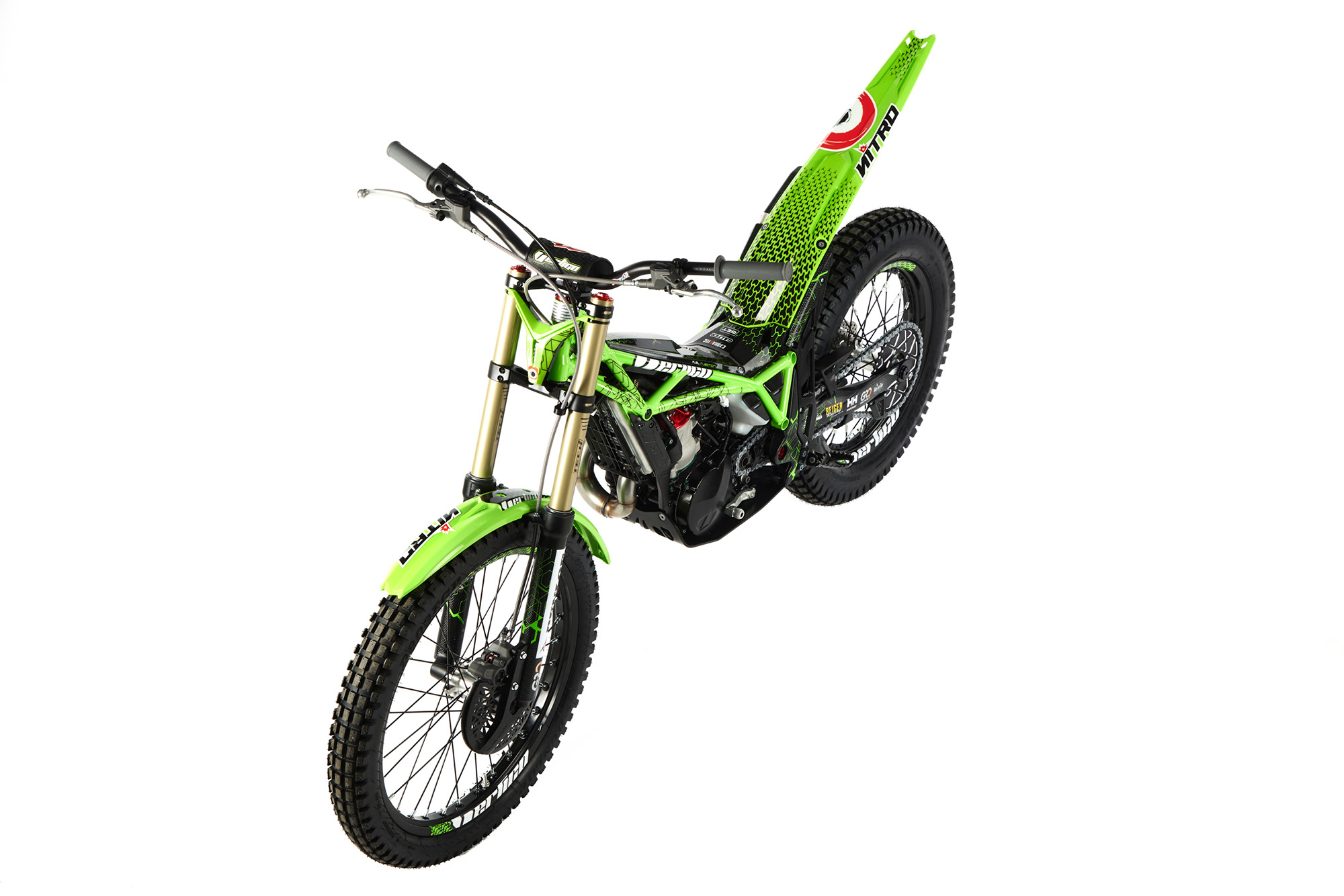

Photo Gallery
