ALL PURPOSE BIKE: 50% ASPHALT, 50% OFF-ROAD

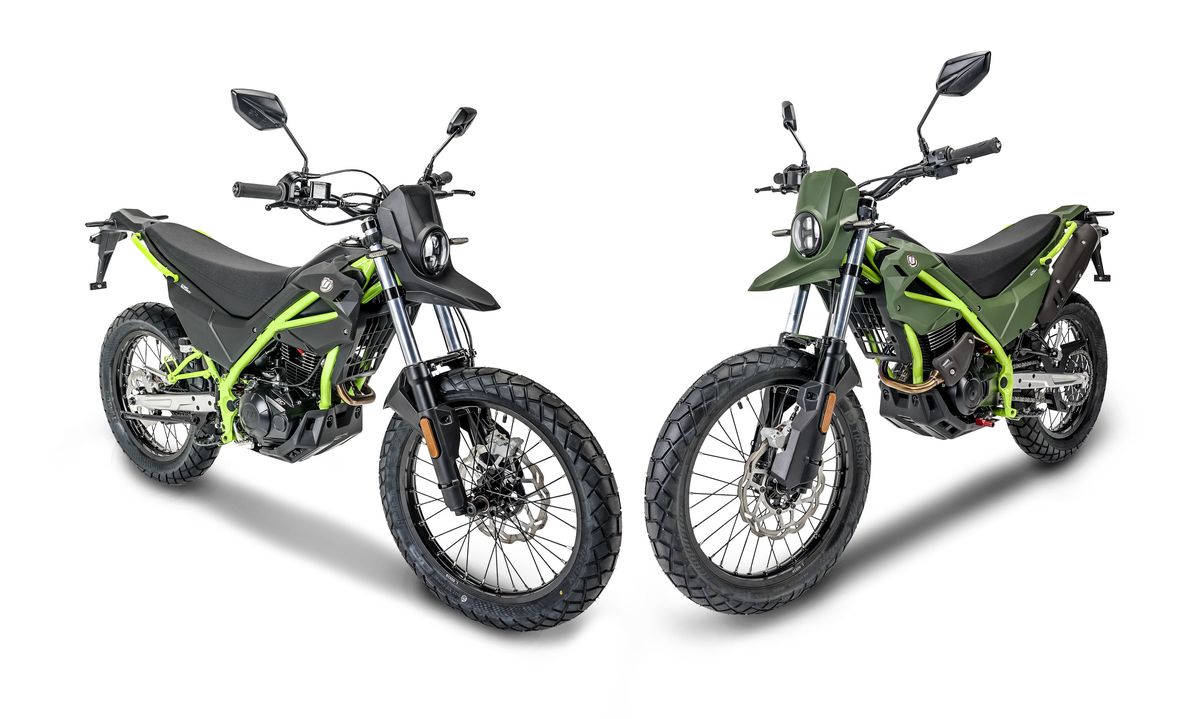

Vertigo Linko 125

2024

The Vertigo LINKO epitomizes versatility in its truest form, excelling effortlessly on asphalt while demonstrating nimble agility on both track and rugged mountainous off-road terrain. There are no boundaries thanks to the smoothness of its clutch and the power of its 4-stroke 125cc engine.

This new bike from Vertigo Motors has been meticulously developed in the Research and Development department in Palau-Solità i Plegamans, where engineers have fused innovation and experience to create a modern and versatile motorbike, suitable for all riders and terrains. The development process has entailed months of unwavering dedication and meticulous refinement to guarantee that the LINKO adheres to the most stringent standards. As a 125 cc model, it is ideal for newcomers to two-wheelers holding an A2 licence.

Additionally, it stands out as a straightforward, low-maintenance and fuel-efficient motorcycle, owing to the advanced Vertigo-engineered electronics. The brand, renowned for its expertise in fuel injection for two-stroke motorcycles, has achieved global acclaim. Now, it has pioneered electronic fuel injection tailored specifically for a four-stroke engine.

ENGINE SIZES

125cc

Technical specifications

ENGINE

4 stroke engine

ENGINE SIZE

125cc EFI

Stroke

52.4 x 57.8 mm

CRANKCASE

Aluminium

GEARBOX

5 speed gearbox

CLUTCH

Oil-bathed multidisc with preload spring designed for pleasant and efficient shifting

TRANSMISSION

11z / 38z

CHAIN

520×100

EXHAUST

Crossbow side exhaust

EXHAUST MUFFLER

Vertigo design in INOX

REFRIGERATION

by air

FUEL INJECTION

Vertigo electronic injection

ENGINE SENSORS

Integrated injection driver
CAN 2.0 B Protocol
Atmospheric pressure and air temperature sensor
TPS (Throttle position sensor)

FRAME

Vertigo steel tubular frame

SWING ARM

Forged aluminium

FRONT SUSPENSION

40mm bars and 170mm travel

REAR SUSPENSION

Monoshock / swingarm, Vertigo design with progressive link
shock with compression and preload adjustment
170mm stroke

AIRBOX

Large capacity filter box for greater performance

FUEL TANK

3.2 litres

HANDLEBAR

Double diameter Crossbow handlebar designed for LINKO

FRONT BRAKE

Hydraulic system with 263mm Crossbow disc

FRONT CALIPER

4 pistons

FRONT RIM

Black anodized aluminium, 1.60×17″ with black machined Vertigo hub.

REAR BKAKE

Hydraulic system with 200mm Crossbow disc

REAR CALIPER

4 pistons

REAR RIM

Black anodized aluminium, 2.15×17″ with black machined Vertigo hub.

TYRES

TIMSUM

SKID PLATE

PP + TPU crankcase protector

Adhesives

high quality blister, special design LINKO MY2024

TOTAL LENGHT

2060mm

DISTANCE BETWEEN AXLES

1350mm

number of places

2

SEAT HEIGHT

820mm

WEIGHT

101 kg

Photo Gallery
