The KING of the SSDT

Dougie Lampkin Replica

2023

This is the undisputed king of the SSDT modern era. The current champion and winner of 5 out of the last 6 editions of what is considered the toughest and most demanding test in the trials world. Vertigo is proud to present the new Dougie Lampkin Replica 2023 (DL12 2023), a victorious bike which flourishes in the mythical Scottish sections with Dougie Lampkin’s experienced hands. One more year, the DL12 reaches the market for another season integrating unique specifications linked to Dougie’s legendary achievements, in addition to all the innovations and improvements that have made the Nitro one of the most desired bikes in the trials market.

DOWNLOADS:

Spare parts manual: 125cc | 225cc | 250cc 280cc 300cc

ENGINE SIZES

300cc 280cc 250cc 200cc 125cc

Technical specifications

ENGINE

2 stroke engine

ENGINE SIZE

125cc EFI

200cc EFI

247cc EFI

280cc EFI

300cc EFI

Stroke

54×54.5mm

72.5×54.5mm

72.5x60mm

76x60mm

79x60mm

CRANKCASE

Aluminium

GEARBOX

6 speed gearbox, 4 gears designed for trials

CLUTCH

9z/48

9z/40

10z/42

CHAIN

Regina 101

Regina 103

HYBRID START SYSTEM

Battery assisted, for a easier start and optimised operation of the electrical components
Dedicated battery compartment under the seat, protected from mud and water

DL12 REPLICA PERFORMANCE PARTS

Soft geometry throttle body
Green silicone cooling hoses
Red kit lever adjusters
Machined Vertigo footrests and rear brake step plates
0,7mm Klingersil cylinder gasquet
DL12 thermo bottle with double ceramic coating and screw cap

EXHAUST MUFFLER

Vertigo Nitro side silencer

RADIATOR

Vertigo design adapted to frame

FUEL INJECTION

Electronic injection

ENGINE SENSORS

Integrated injection driver
Protocolo CAN 2.0 B
Sensor de presión atmosférica y temperatura del aire
TPS (Throttle position sensor)

WATER PUMP

ECU electronic, self purging water pump

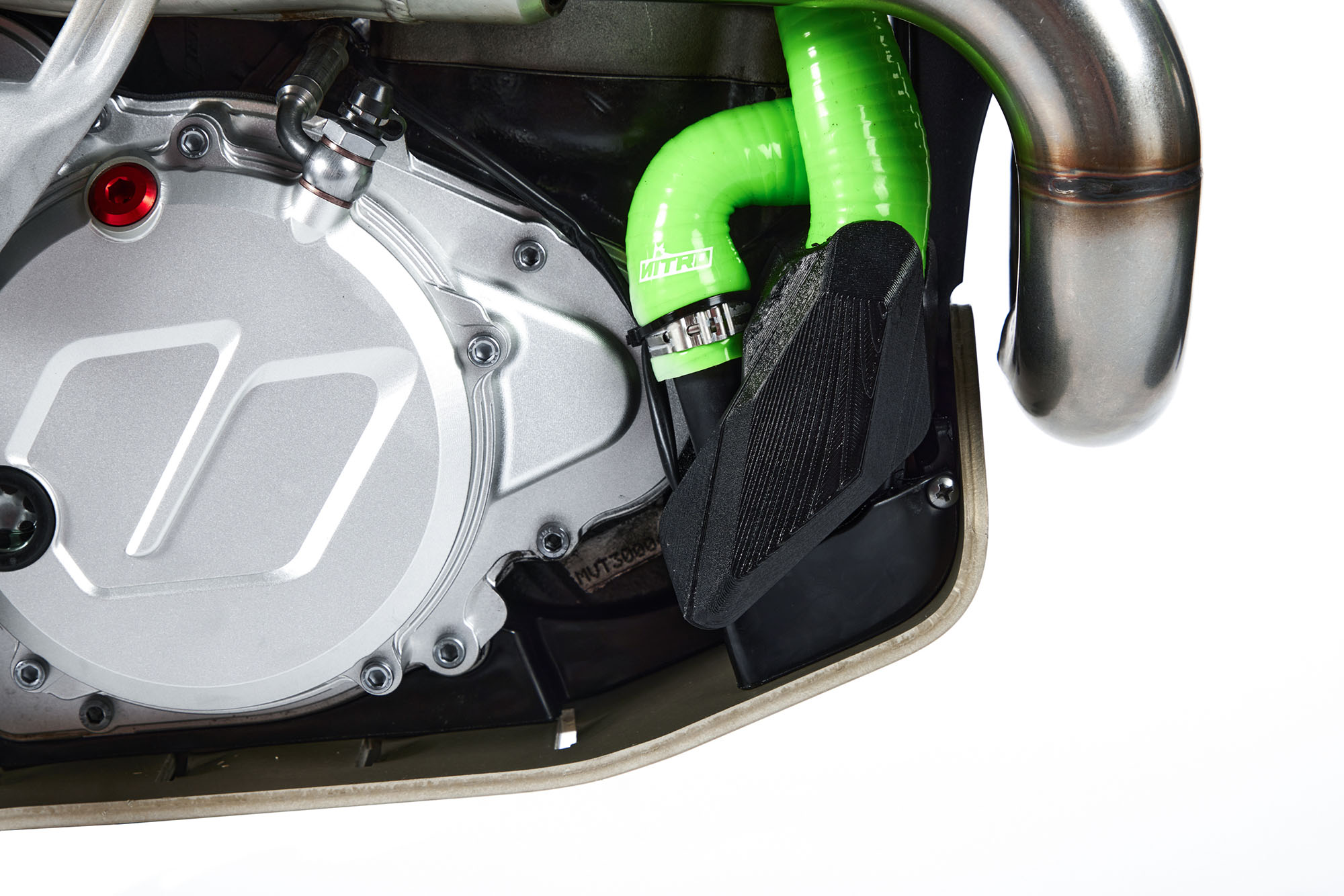

New water pump protector

FRAME

Nitro multitubular silver chassis 25CrMo4 steel + aluminium 6082 subframe

FRONT FENDER

New design with greater protection for motorcycle and rider

SWINGARM

Black aluminium cast

FRONT SUSPENSION

170mm stroke Tech Factory

REAR SUSPENSION

Monoshock / swingarm, Vertigo design
Swingarm combined with REIGER 3 way monoshock with compression, rebound and spring preload adjustment
170mm stroke

AIRBOX

New capacity airbox. New design providing better performance specially in lower RPM

FUEL TANK

New high capacity 2.3l and repositioned fuel tank

HANDLEBAR

Black Renthal Fatbar

FRENO DELANTERO

Hydraulic Braktec system with 185mm disc

PINZA DELANTERA

4 pistons

FRONT RIM

Morad black 1.60 x 21″ with green Vertigo anodized hub
